MCI Laser Chip

ORI-MZM-T-BW is the thermal tuning version, whose phase shift is tuned by micron heaters integrated on chip. Compared to traditional LN modulators, the heater version could maintain a lot more stable bias point throughout lifetime of the device. The device is a hermetic sealing package with internal optical power, which save more space size for the end user.

Multi-channel Interference Widely Tunable Laser Chip Specification

MCI Laser Chip

Figure 1:Microscope image of the MCI laser with integrated SOA.



Hightlights:

● Based on Multi-channel-interference proprietary design

● >48 nm tunability

● >19 dBm output power

● ~150 kHz linewidth

● Available in COS form



Applications:

DWDM transmission systems

Tunable DWDM transponders and transceivers

Dynamic provisioning and wavelength routing in metro DWDM systems

Optical packet or burst-mode switching

Test and measurement



Key parameters:

Parameter

Min

Typ

Max

Unit

Output power @25C

80

90



mW

Tuning range+

37

40

60

nm

Channel spacing (ITU grid)

50



GHz

Frequency accuracy

-1.5



1.5

GHz

Side-mode suppression ration

45





dB

OSNR

45

50



dB/0.1nm

Linewidth*



70

180

kHz

Relative intensity noise





-140

dB/Hz

+ With single TEC temperature, tuning range is ~40nm. By setting two TEC temperature values, the tuning range can extend up to 60nm.

* Linewidth is taken at 100MHz of the frequency noise spectrum.

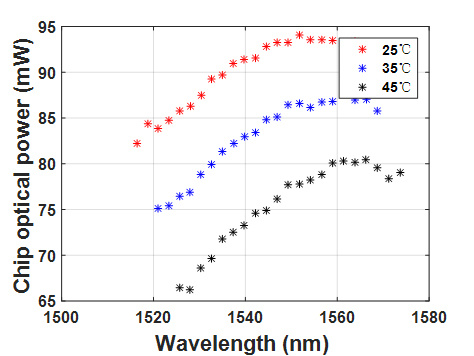

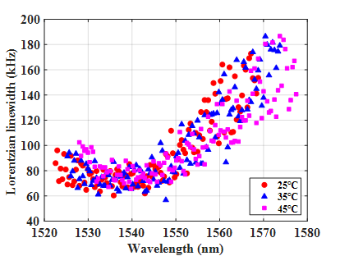

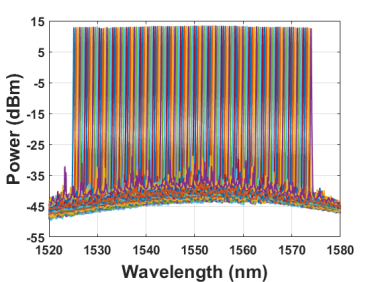

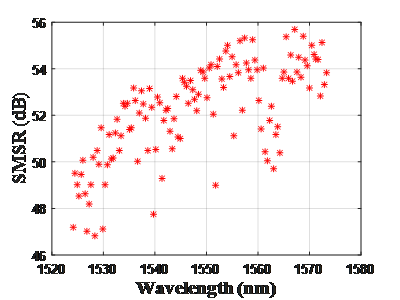

Performance:

Keyword:

MCI Laser Chip
